New Dual 52mm 0-190 Ohm Fuel Level Meter Voltmeter with Warning Light for Fuel Sending Unit Sensor 100-600mm Boat Car 12V24V

New Dual 52mm 0-190 Ohm Fuel Level Meter Voltmeter with Warning Light for Fuel Sending Unit Sensor 100-600mm Boat Car 12V24V – On our website, you can find the best electronic products at advantageous prices.

✅ Choose free delivery to save even more

New Dual 52mm 0-190 Ohm Fuel Level Meter Voltmeter with Warning Light for Fuel Sending Unit Sensor 100-600mm Boat Car 12V24V

Before purchasing our products, we recommend that you read the product description. If you have any doubts, do not hesitate to contact us. We will be happy to help you choose the most suitable product for your needs.
Contact us on Whatsapp: HERE

QUALITY GUARANTEE choose safety, savings, and professionalism, choose us. We offer top-notch assistance that will never leave you alone during the entire pre- and post-purchase phase. We offer high-quality products, smart and safe savings, do not rely on improvised sellers.

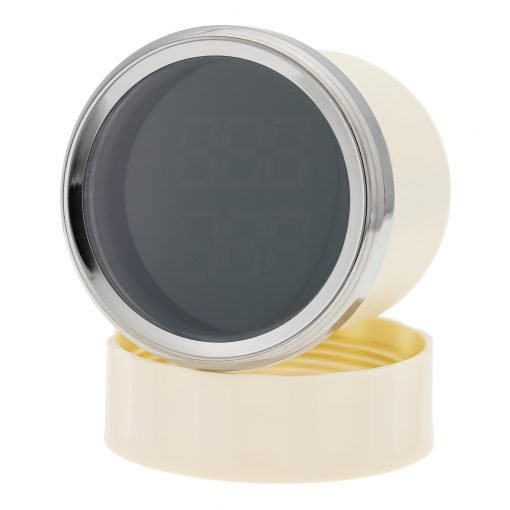

2022 New 52mm Universal 2 in 1 Dual Gauge

Application: Marine Boats/Truck/Bus/Motor Home/Hot Rod/Generators

About the Gauge Reading

The device works, with a little delay (about 20-80 seconds) of changes in the readings. Apparently, it is done in order not to react to the splash of water in the tank.

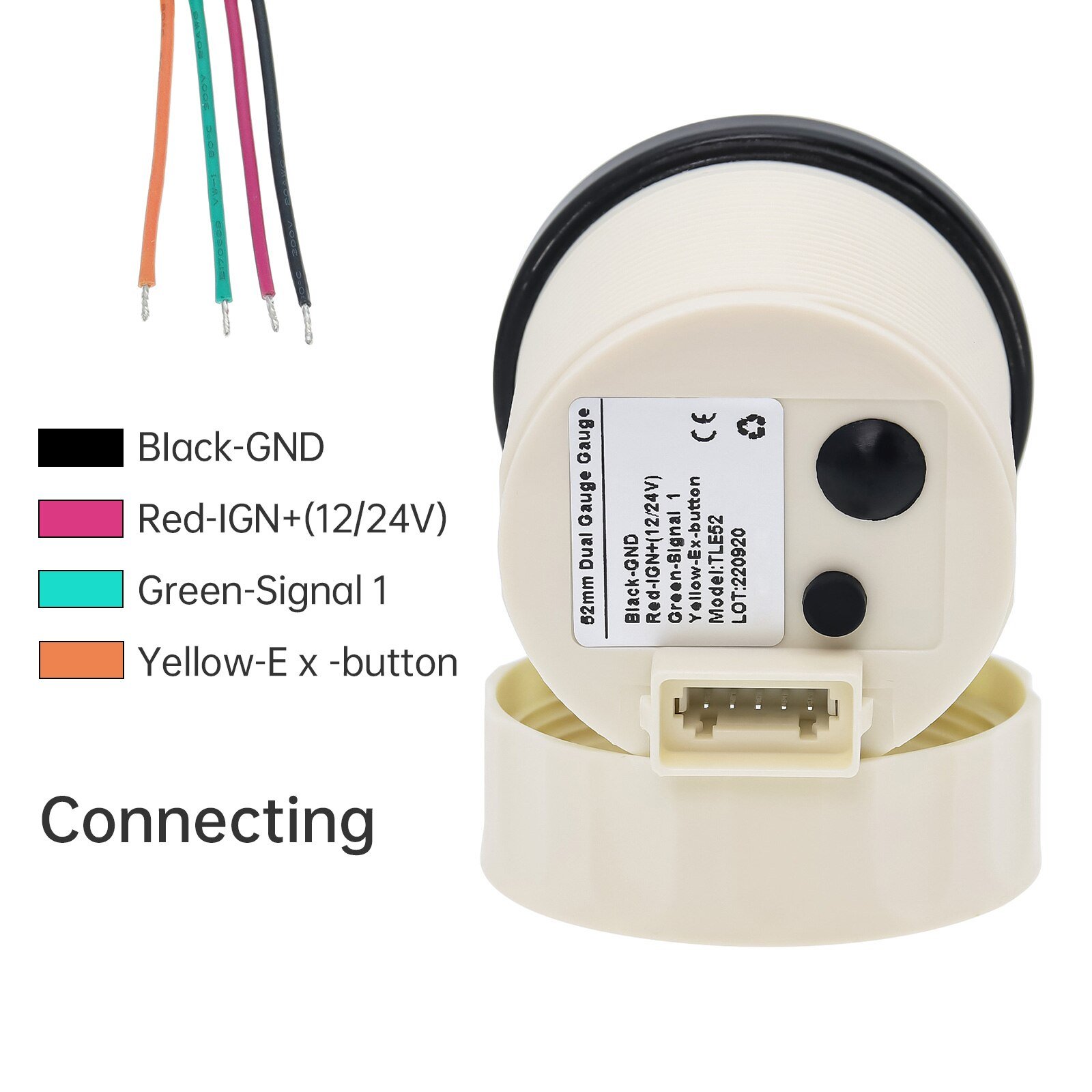

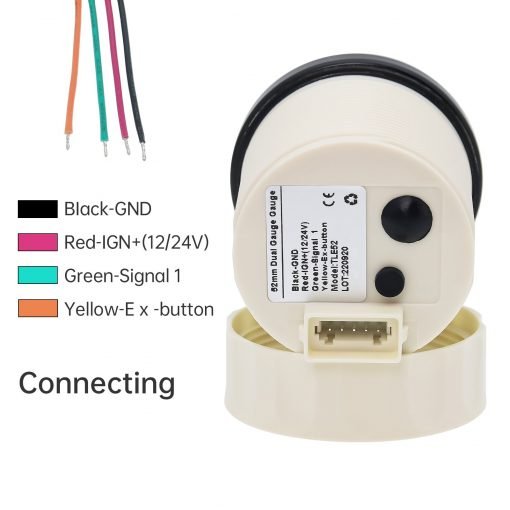

Gauge connection:

black line connect to the negative line,
red line connect to the positive line,
green line connect to the sensor signal line,
yellow line is exchange button line

Feature:

– 52mm diameter Two in One Gauge show with easy installation

– Programmable Input Resistance Ohm Signal to adapt different fuel /water/temperature sensor

0-190Ω, 0-180Ω, 10-180Ω, 240-33Ω, 240-30Ω

– High Resolution View under sunshine

– Installation Diameter: 52mm (2inch)

– Reverse polarity protection and anti-fogging performance

– Working Voltage:12V/24V

– Working temperatures: – 40 to 85°C

– IP66 Waterproof

INSTALLATION GUIDE

1. Cut an Φ52mm (2-1/16") hole in the panel (II) allow a clearance of 55mm (2 3/16"). behind the panel.

2. Remove fastening ring (I), insert gauge from front. Tighten gauge (III) using fastening ring ( I)

3. Connect cables according to the diagram/label.

Setting Menu:"Unit" "R 1" "R 2"

1.Hold & Press the button, Power On Gauge, the LED screen will show Switch Show

Unit, R1, R2

2.Unit

Fuel Gauge, Water Level, HTG Sewage Level: %

Water temperature: ℃ or ℉

3.R1—Configure Top Row Signal Range

Press Button to switch 000 ~006

For example, LED will show 001, which means 0~180ohm, then release the button and wait digital flash to complete to save setting

Setting Menu:"Unit" "R 1" "R 2"

1.Hold & Press the button, Power On Gauge, the LED screen will show Switch Show

Unit, R1, R2

2.Unit

Fuel Gauge, Water Level, HTG Sewage Level: %

Water temperature: ℃ or ℉

3.R1—Configure Top Row Signal Range

Press Button to switch 000 ~006

For example, LED will show 001, which means 0~180ohm, then release the button and wait digital flash to complete to save setting

4.R2—Configure Top Row Signal Range

Press Button to switch 000 ~006.

For example, LED will show "002" , which means 10~180ohm, then release the button and wait digital flash to complete to save setting

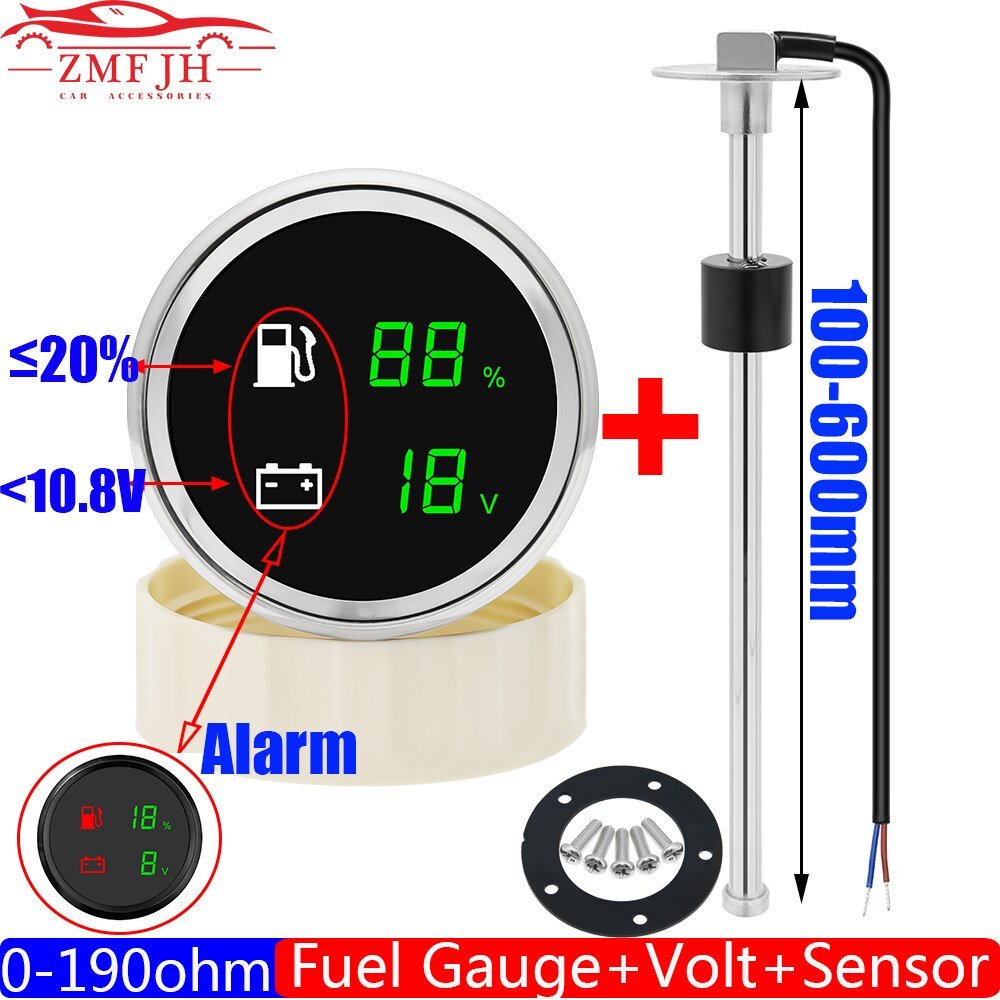

Gauge Alarm Set:

– Fuel Level Gauge Alarm Set:≤20%
– Voltmeter Alarm Set: <10.8V

– When the gauge warning , the light will be turn to red.

Package:1PCS Gauge+Cable+Manual

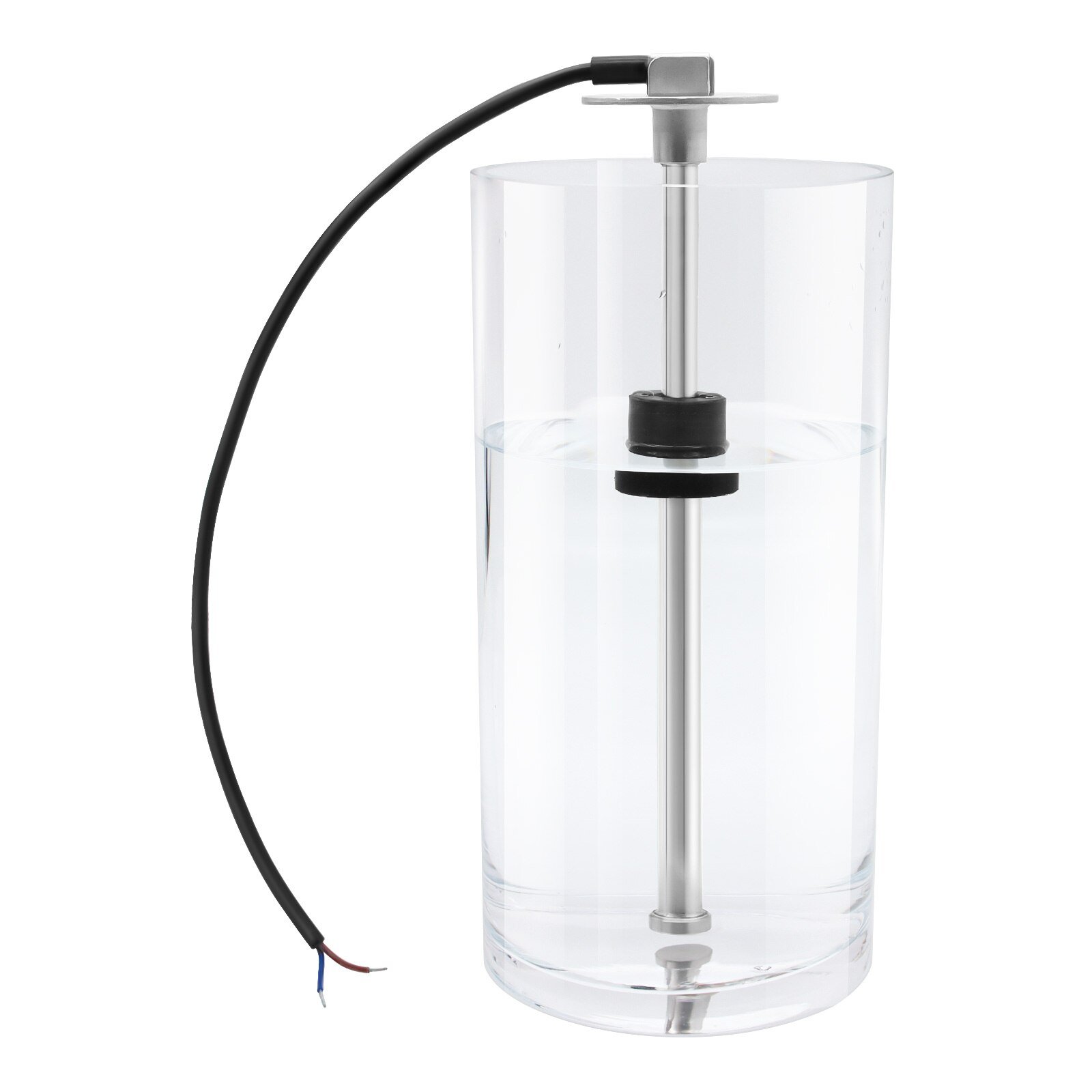

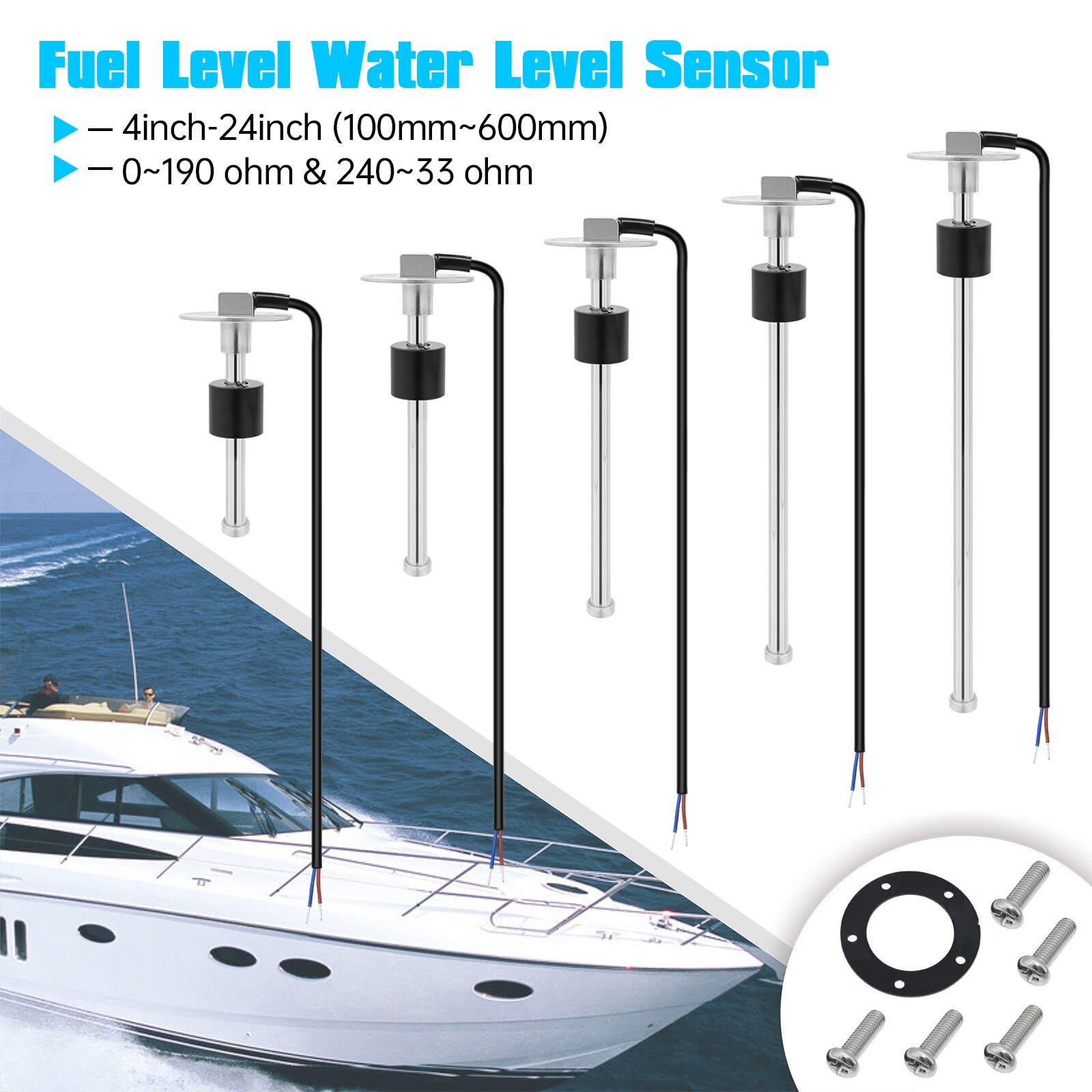

Fuel Level Sensor:

– Resolution range: 21 mm

– Signal: 0-190ohm

– Range: Empty to full

– Working volt:9-32VDC

– Operating current: ≤60mA

– Operating temperature: -30~+75℃

– Storage temperature: -40~+85℃

– Sensor Length: 100mm-600mm(can customized)

– Fitment: for Gasoline, diesel, methanol fuel, ethanol fuel

Package:

1 X Sensor+manual
