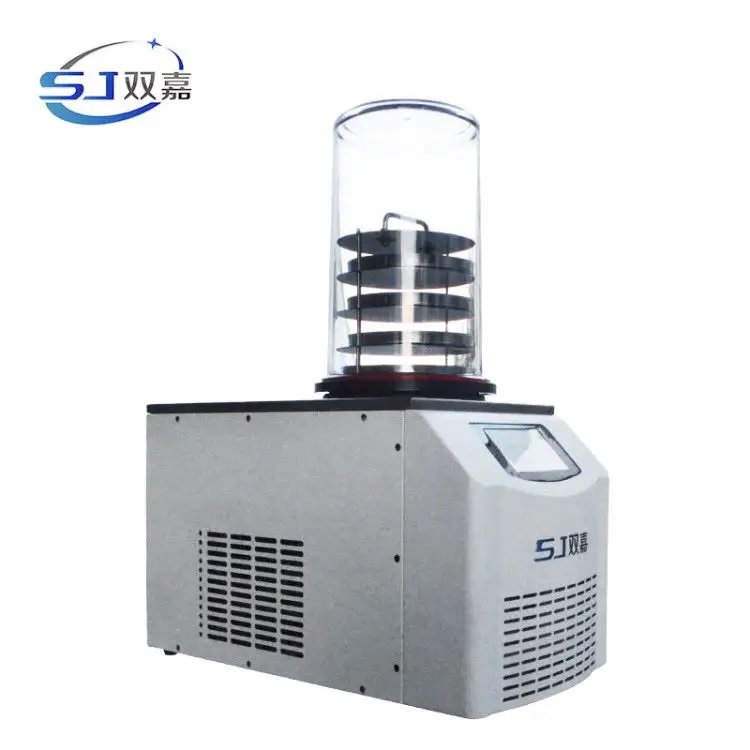

FD-1A-50 electrically heated freeze dry machine / intermittent ordinary freeze drying machine / freeze dryer plant

FD-1A-50 electrically heated freeze dry machine / intermittent ordinary freeze drying machine / freeze dryer plant – On our website, you can find the best electronic products at advantageous prices.

✅ Choose free delivery to save even more

FD-1A-50 electrically heated freeze dry machine / intermittent ordinary freeze drying machine / freeze dryer plant

Before purchasing our products, we recommend that you read the product description. If you have any doubts, do not hesitate to contact us. We will be happy to help you choose the most suitable product for your needs.
Contact us on Whatsapp: HERE

QUALITY GUARANTEE choose safety, savings, and professionalism, choose us. We offer top-notch assistance that will never leave you alone during the entire pre- and post-purchase phase. We offer high-quality products, smart and safe savings, do not rely on improvised sellers.



WE HAVE TWO , COMMON CREEN AND  7 INCHES  TOUCH CREEN ,PLS ADVISE WHICH ONE .



Main features

Vacuum freeze-drying technology, short for freeze-drying, also known as sublimation drying.It is widely used in medicine, biological products, chemical industry and food industry.Freeze-drying techniques are very useful for heat-sensitive substances such as antibiotics, vaccines, blood products, enzyme hormones and other biological tissues.

Table design, compact, occupies a small table.

With beautiful appearance, ergonomic design, easy to operate.

The original imported closed compressor is efficient and reliable with low noise.

The cold well openings are large, with sample prefreezing function.

The cold trap is all stainless steel, the cold trap has no coil, and the smooth corrosion resistance.

The patent design guide tube improves the effective area of the cold well and quickly freeze-dried.

The original imported filling valve can be filled with nitrogen or inert gas.

The transparent bell type drying chamber is safe and intuitive.

Stainless steel sample holder with adjustable sample disc spacing.

The international standard vacuum interface can be used with a variety of vacuum pumps.

Digital display temperature and vacuum degree.

Sample temperature display (optional).



Technical indicators for freeze-drying machine – fd-1a -50.

Low condensation temperature: – 50 ℃

True emptiness: < 20Pa.

Low freeze-dried area: 0.12 ㎡

Loading material: 1.2 litres.

Water capacity: 3kg/24h.

Low samples plate: Φ 200 mm x 4 layers

Power requirements: 220V 50Hz 850W.

Size: 380 * 600 * 345mm.



Standard configuration for freeze-drying machine – fd-1a -50.

Desktop host, 2 liter domestic vacuum pump, ordinary drying device (4 sample plates)



参数/型号MODEL /PARAMETER	FD-1A-50	FD-1B-50	FD-1C-50	FD-1D-50	FD-1E-50
tem.	< -50℃	< -50℃	< -50℃	< -50℃	< -50℃
真空度VACUUM	< 9Pa	< 9Pa	< 9Pa	< 9Pa	< 9Pa
capacity	0.12㎡	0.08㎡	0.12㎡	0.08㎡	T型24管
plate	1.2 升	0.7 升	1.2 升	0.7 升	/
捕水能力Catch water capacity	3kg/24h	3kg/24h	3kg/24h	3kg/24h	3kg/24h
冷阱尺寸Cold hydrazine size	Φ220×130	Φ220×130	Φ220×130	Φ220×130	Φ220×130
样品盘sample plate	Φ200mm     4层	Φ180mm     3层	Φ180mm     3层	Φ200mm     4层	/
source of power	220V 50Hz 850W	220V 50Hz 850W	220V 50Hz 850W	220V 50Hz 850W	220V 50Hz 850W
size	W350×D600×H345mm	W380×D600×H345mm	W380×D600×H345mm	W350×D600×H345mm	W350×D600×H345mm

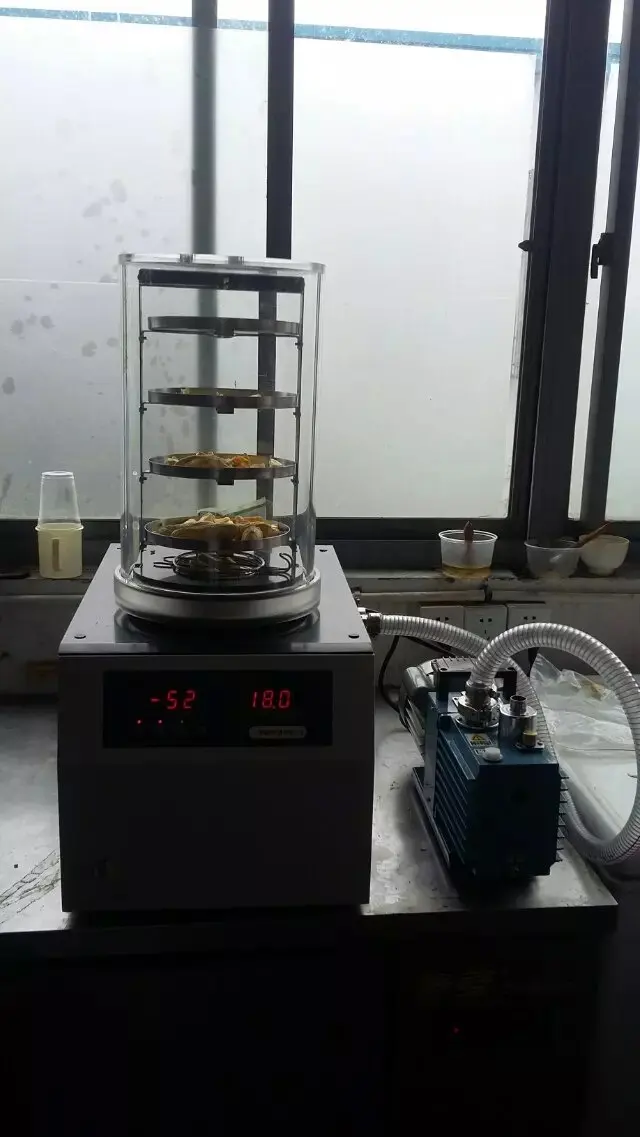

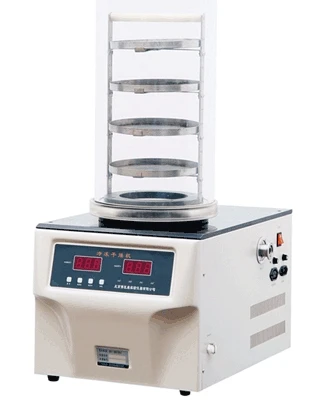

COMMON CREEN





shipping  way  :refrigerant INCLUDED , ONLY CHOOSE BY SEA  OR BY TRAIN

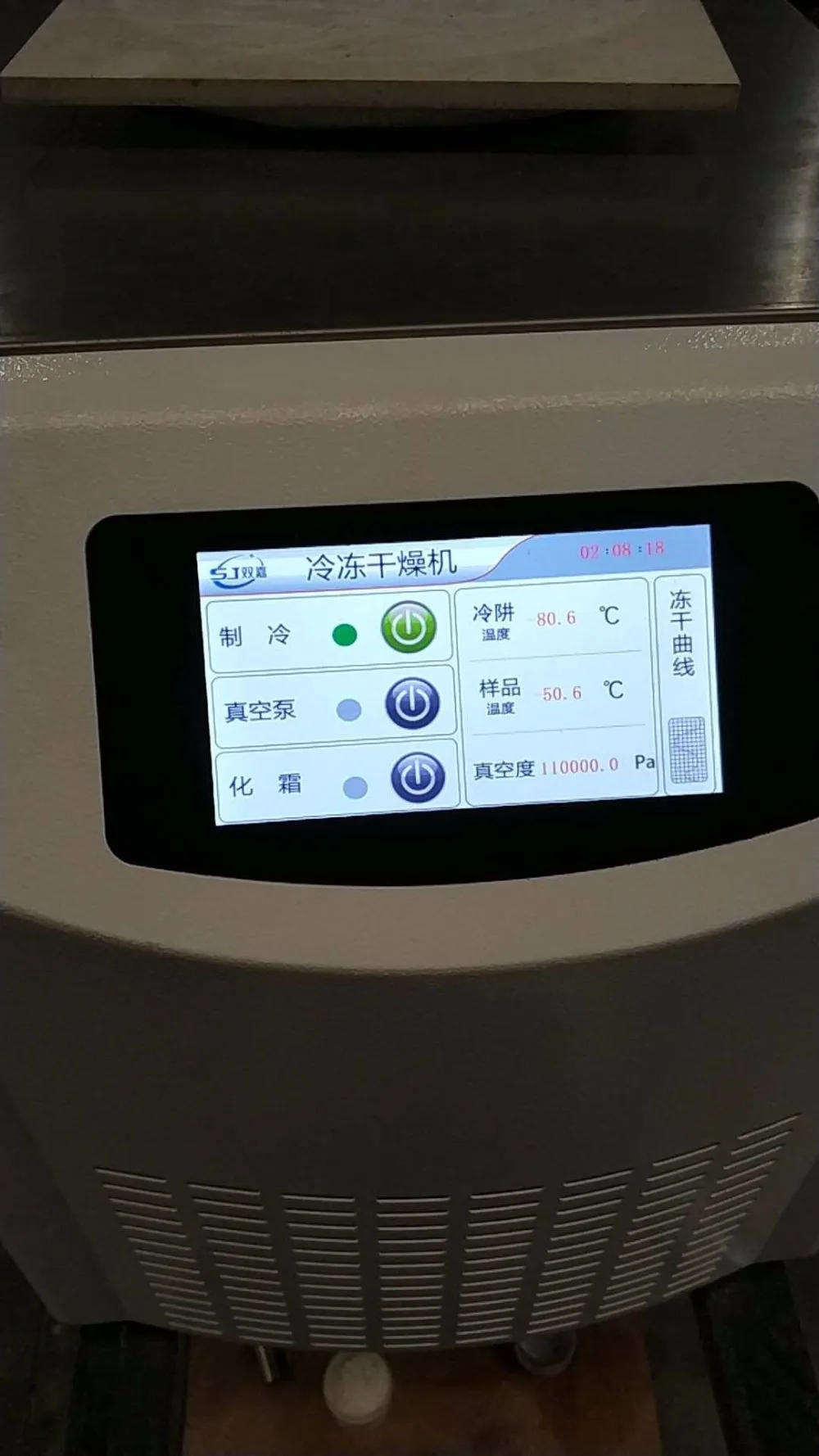

7-inch LCD touch screen, with freeze-drying curve.；language can be change into English VERSION

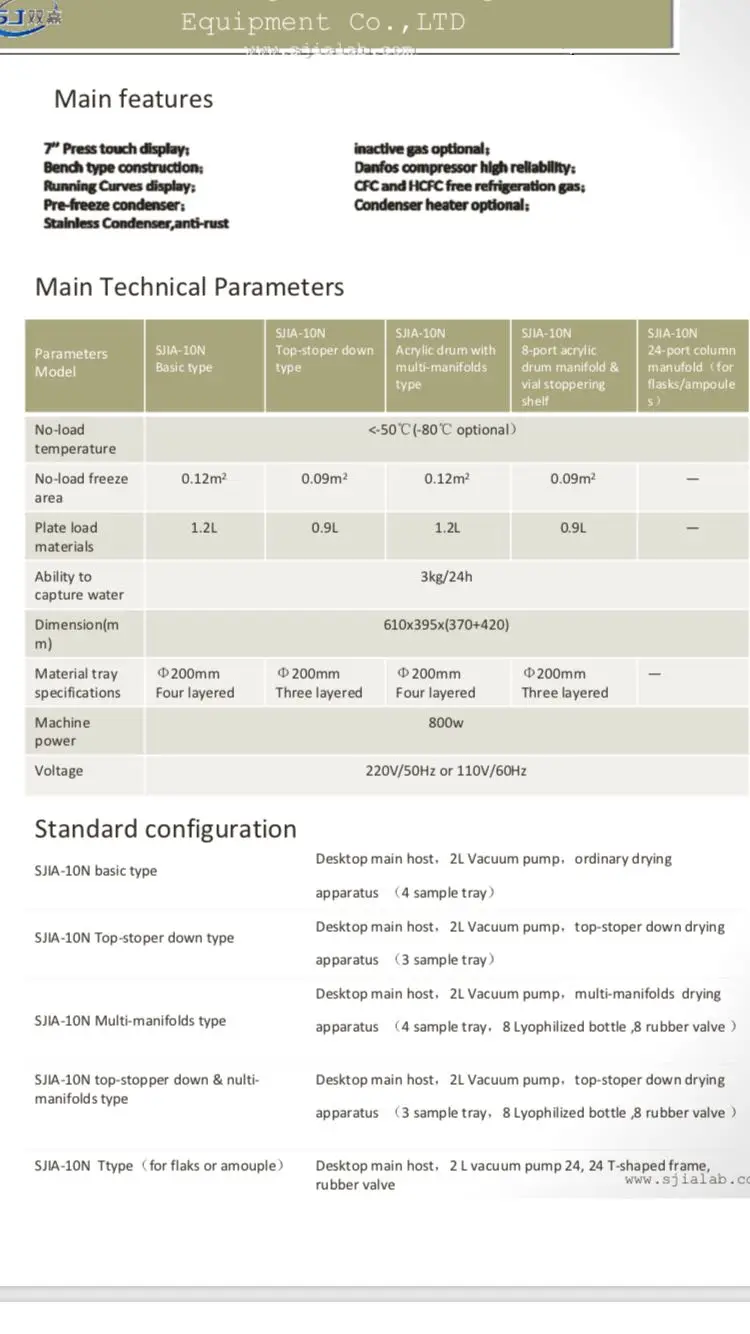

Model		SJIA-10N-50A	SJIA-10N-50B	SJIA-10N-50C	SJIA-10N-50D	SJIA-10N-50E
type	unit	Basic	Top-down	Manifold type	Top-down & manifold	T type
Drying area	㎡	0.12	0.092	0.12	0.092	/
Tray size	mm	200*4	200*3	200*4	200*3	/
Tray caoacity/condenser temperature	L	1.5	1	1.5	1	/
	℃	<-55  (-80 operatoin,different price）
Vacuum	Pa	<10pa
Tray spacing	mm	70				/
Vails number only for reference	22	260	165	260	165	/
	16	480	285	480	285	/
	12	920	560	920	560	/
Ability to capature water	Kg	3
voltage	V/Hz	220V/50Hz-60HZ  or 110V 50-60HZ
power	W	850
Machine size	mm	394 x 460 x 697mm
