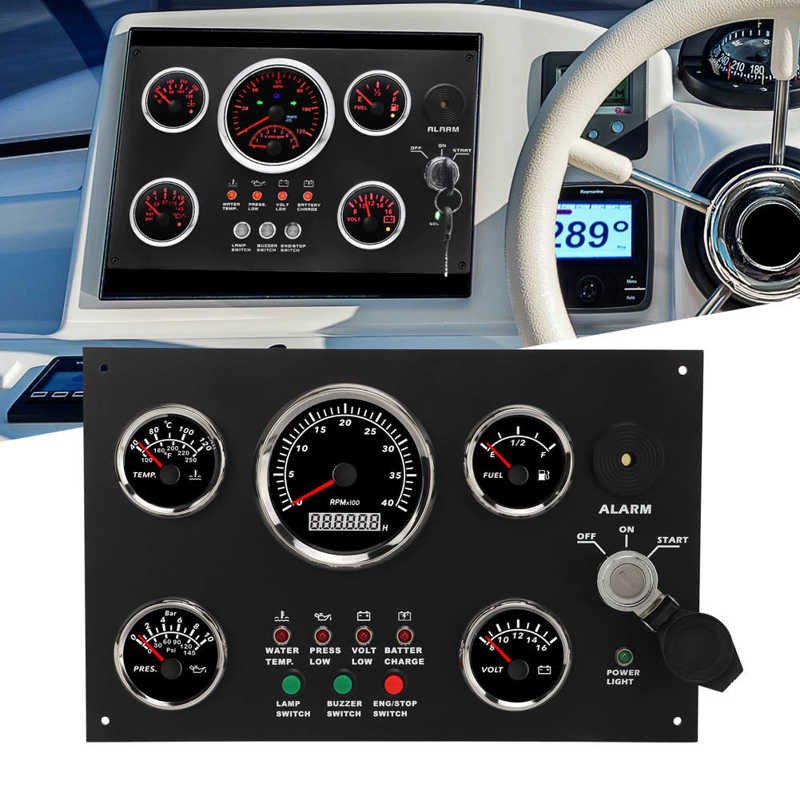

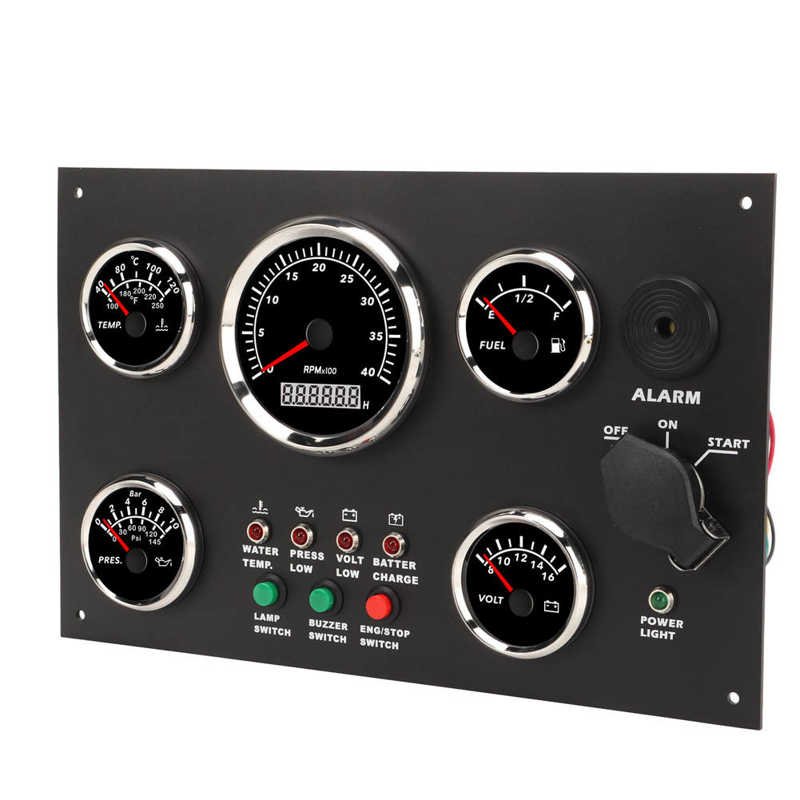

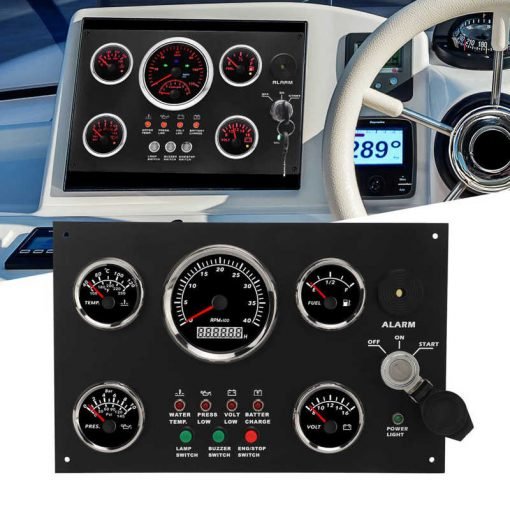

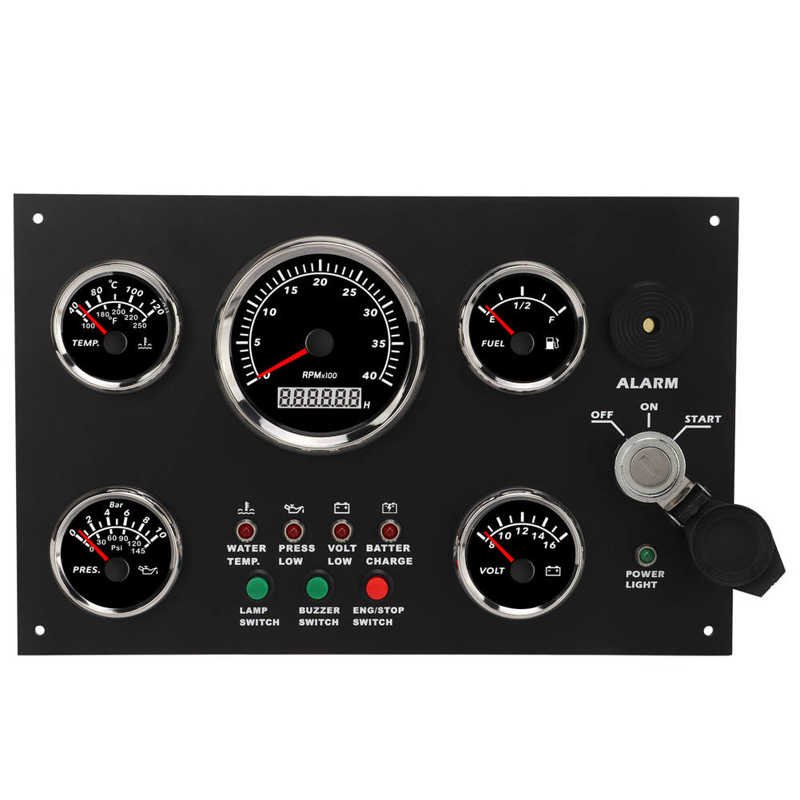

Boat Instrument Panel Tachometer Fuel Level Water Temperature Oil Pressure Meter Voltmeter 5 Dash Gauge Set Marine Parts
€247.02
Assistance |
Satisfaction Guarantee |
||
| Assistance and support | 14 days with easy and free returns | ||
Warranty |
Secure Payments |
||
| 2 years warranty | Paypal - Credit Card | ||
999 in stock
Boat Instrument Panel Tachometer Fuel Level Water Temperature Oil Pressure Meter Voltmeter 5 Dash Gauge Set Marine Parts – On our website, you can find the best electronic products at advantageous prices.
✅ Choose free delivery to save even more
Boat Instrument Panel Tachometer Fuel Level Water Temperature Oil Pressure Meter Voltmeter 5 Dash Gauge Set Marine Parts
Before purchasing our products, we recommend that you read the product description. If you have any doubts, do not hesitate to contact us. We will be happy to help you choose the most suitable product for your needs.
Contact us on Whatsapp: HERE
QUALITY GUARANTEE choose safety, savings, and professionalism, choose us. We offer top-notch assistance that will never leave you alone during the entire pre- and post-purchase phase. We offer high-quality products, smart and safe savings, do not rely on improvised sellers.
- Size: Boat Instrument Panel
- Type: Ring
- Material: Aluminum
- Origin: Mainland Factory
- Feature 1: Marine Instrument Panel
- Feature 2: Boat Gauge Panel
- Feature 3: Marine Dash Instrument Panel
- Feature 4: Dash Gauge Set
- Feature 5: Gauge Set with Dashboard
- Feature 6: Gauge Cluster Set
Feature:
1. 5 Gauge Set: The dash panel has 5 meters, 85mm tachometer can reveal engine speed 0‑4000RPM, 99999.9H timing; 52mm water temp meter shows water temperature 100‑250℉; 52mm fuel level meter shows tank oil volume F‑1/2‑E; 52mm oil pressure meter can show tank oil pressure 0‑10Bar; 52mm voltage meter can show battery voltage 8‑16V.

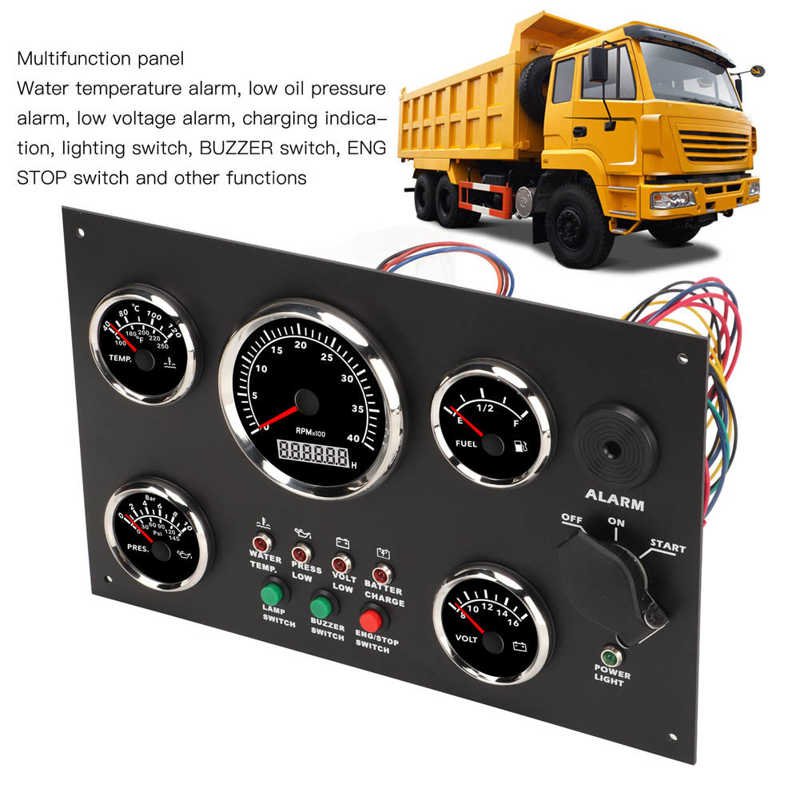

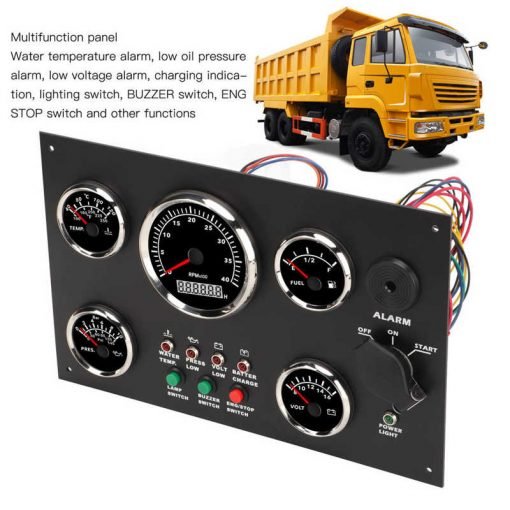

2. Multifunctional: The instrument panel comes with water temperature alarm, low oil pressure alarm, low voltage alarm, charging indication, light switch, BUZZER switch, ENG STOP SWITCH, etc. All 5 gauges are with red backlight and red LED needles, so you can clearly view each parameter even at night.
3. Durable Material: The gauge set is made of aluminum alloy panel, 316L stainless steel front cover bezel, antifog curved transparent lens, industrial grade electronic components and structural parts, IP67 waterproof, can withstand mechanical shock and vibration, very suitable for marine and various harsh environments.
4. High Accuracy: All gauges adopts pulse motor to drive the pointer to indicate the corresponding scale, high accuracy, easy to read. Adopt ultra wide working voltage design, long term working voltage is 9‑32V, up to 36V (≤ 1 minute), working current ≤ 100mA, ultra‑low power consumption.
5. Firm Installation: The back harness connectors of the multifunctional instrument panel is equipped with snaps to ensure a solid connection between the instrument and the harness, so that it can work reliably even when used in strong vibration.
6. Wide Application: The marine instrument panel is easy to install, only need 300x190mm unit area, can be used for engine, generator set, caravan, yacht, fishing boat, ship, engineering machinery, agricultural machinery, modified car and other fields.
Specification:
Item Type: Dash Instrument Panel
Material: Aluminum alloy+ABS+stainless steel+tempered glass

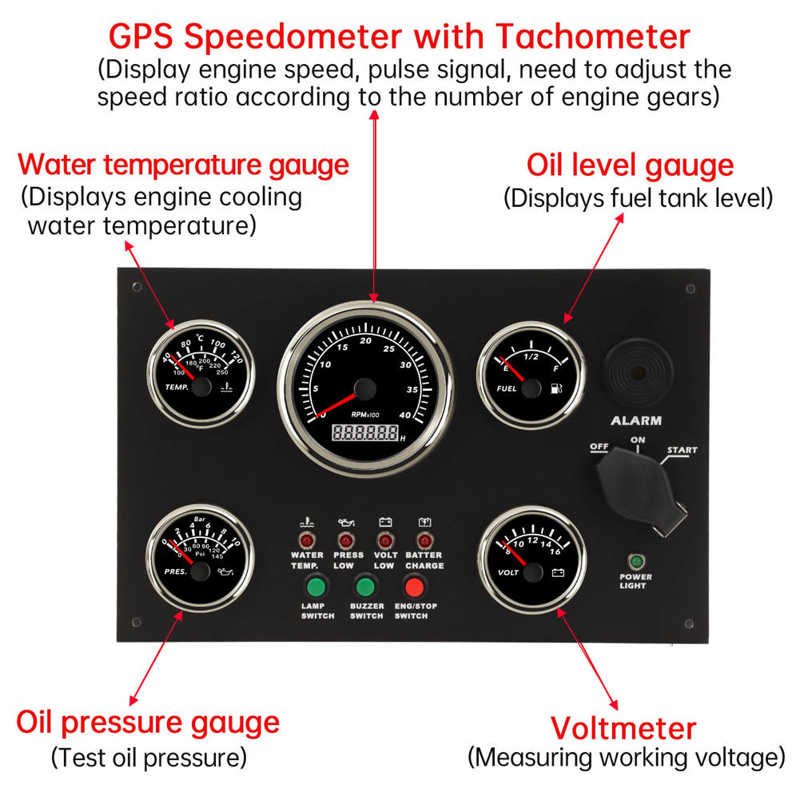

Function Display:
85mm tachometer can display: engine speed 0-4000RPM, 99999.9H timing
52mm water temperature gauge shows water temperature: 100-250℉ (40-120 ℃); (Input signal: 301-22ohms)
The 52mm oil level gauge shows the oil volume of the oil tank: F-1/2-E; (Input signal: 0-190ohms)
The 52mm oil pressure gauge can display the oil pressure of the oil tank: 0-10Bar (0-145psi); (Input signal: 10-184ohms)
52mm voltmeter can display battery voltage: 8-16V;
Operation Mode: LCD display, stepper motor
Working Voltage: DC12V circuit system; (Except for the voltmeter, the other four instruments can work in the DC24V circuit system)
Working Current: ≤ 100 MA
Working Temperature: – 30 ℃ -+75 ℃
Storage Temperature: – 40 ℃ -+85 ℃
Backlight Color: Red
Protection Grade: IP67, can work at 1m underwater, excellent antifog function;
Application: This instrument panel can be installed in the central control position of your RV yacht or engineering vehicle. It only needs 300 x 190mm / 11.8 x 7.5in unit area to combine the five instruments together, which greatly saves space and decorate your central control. The five instruments are equipped with red back light and red LED light needles, which can clearly view all parameters even at night. At the same time, the multifunction panel also includes water temperature alarm, low oil pressure alarm and low voltage alarm, The charging indicator, lighting switch, BUZZER switch, ENG STOP switch and other functions can be used to know the status of the engine at any time through the data on the panel
Application: The central control multifunction refitting panel can be used in the fields of engine, generator set, RV, yacht, fishing boat, ship, engineering machinery, agricultural machinery, refitting vehicle, etc.
Stepping Motor Description: Stepping motor is a discrete value control motor that converts the electric pulse excitation signal into the corresponding angular displacement or linear displacement. This type of motor moves one step every time an electric pulse is input, so it is also called pulse motor.
Package List:
1 x
Dash Instrument Panel
2 x Key
