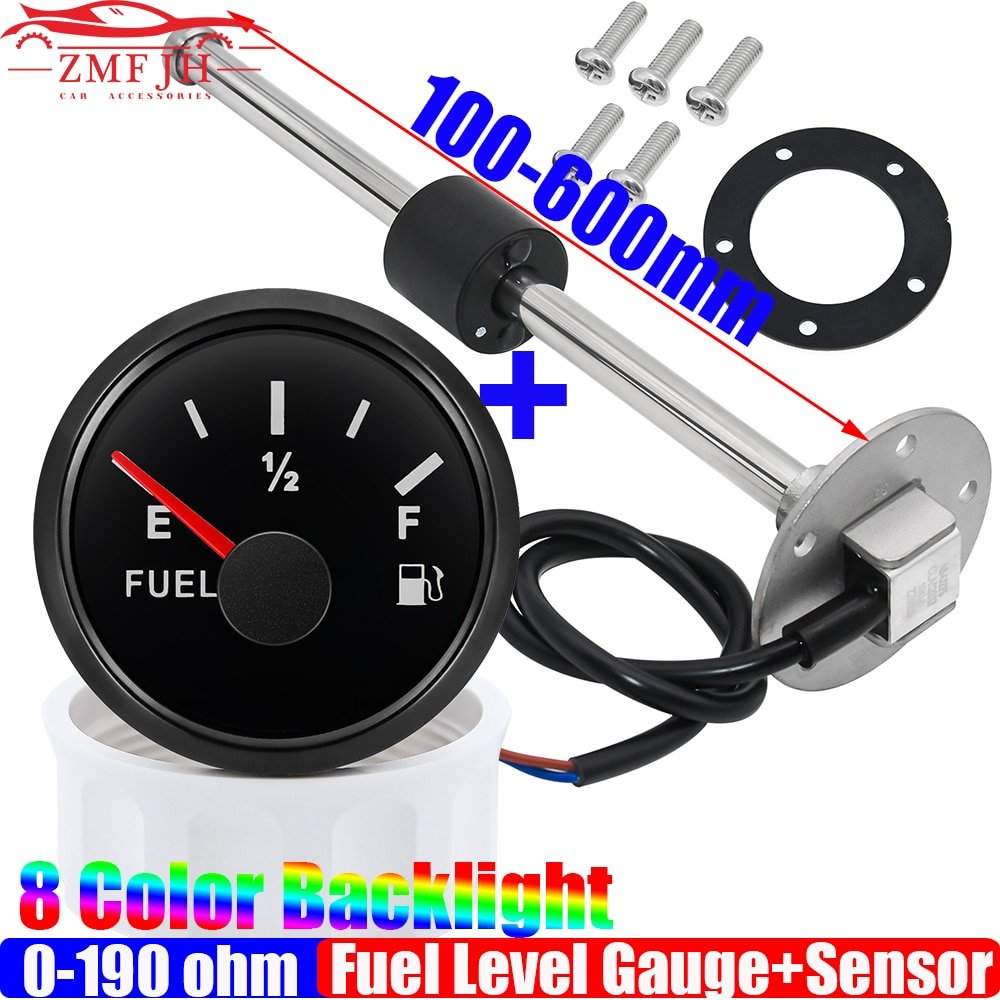

8 Color Backlight 52mm Fuel Level Gauge Fuel Float Level Sensor 100-600mm 0-190 OHM Oil Tank Meter Indicator Auto Boat Yacht

8 Color Backlight 52mm Fuel Level Gauge Fuel Float Level Sensor 100-600mm 0-190 OHM Oil Tank Meter Indicator Auto Boat Yacht – On our website, you can find the best electronic products at advantageous prices.

✅ Choose free delivery to save even more

8 Color Backlight 52mm Fuel Level Gauge Fuel Float Level Sensor 100-600mm 0-190 OHM Oil Tank Meter Indicator Auto Boat Yacht

Before purchasing our products, we recommend that you read the product description. If you have any doubts, do not hesitate to contact us. We will be happy to help you choose the most suitable product for your needs.
Contact us on Whatsapp: HERE

QUALITY GUARANTEE choose safety, savings, and professionalism, choose us. We offer top-notch assistance that will never leave you alone during the entire pre- and post-purchase phase. We offer high-quality products, smart and safe savings, do not rely on improvised sellers.





















Fuel Gauge Specification:

– Operating Voltage:9~32VDC,
– Operating current:≤70mA(24V);
– Operating temperature:-30~+75℃
– Storage temperature:-40~+85℃.
– Signal: 0-190ohm
– Backlight: 8 Color LED
– Range: Empty to 1/2 to Full

Operation:

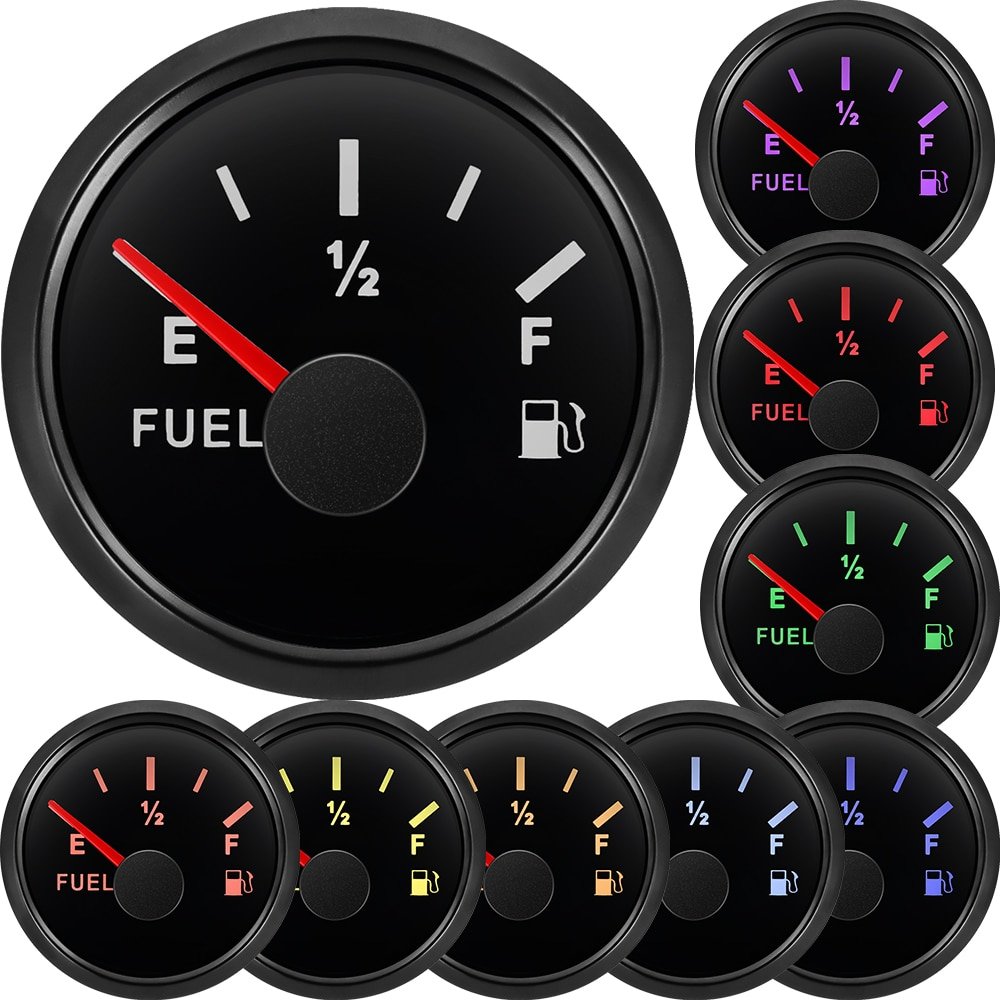

1, Press the Mode button (less than 1 second) to change the
backlight color: Backlight changed in sequence: red (default) →
green → blue → white → yellow → yellow green → orange →
Purple → (automatic).
Automatic: As the gauges was set with the automatic , the backlight
will be off for 2 seconds then lighten up, And will switch the
backlight color as above sequentially.

2,Users could select the input resistance as down
below operations if you have Fuel /Water/Sewage
level gauge.Hold the Mode button for 3 seconds to
enter the setting mode, back light flickering for a while.
The needle point at the “E” position, and you could select
the corresponding parameter via pressing the button
as down below form.

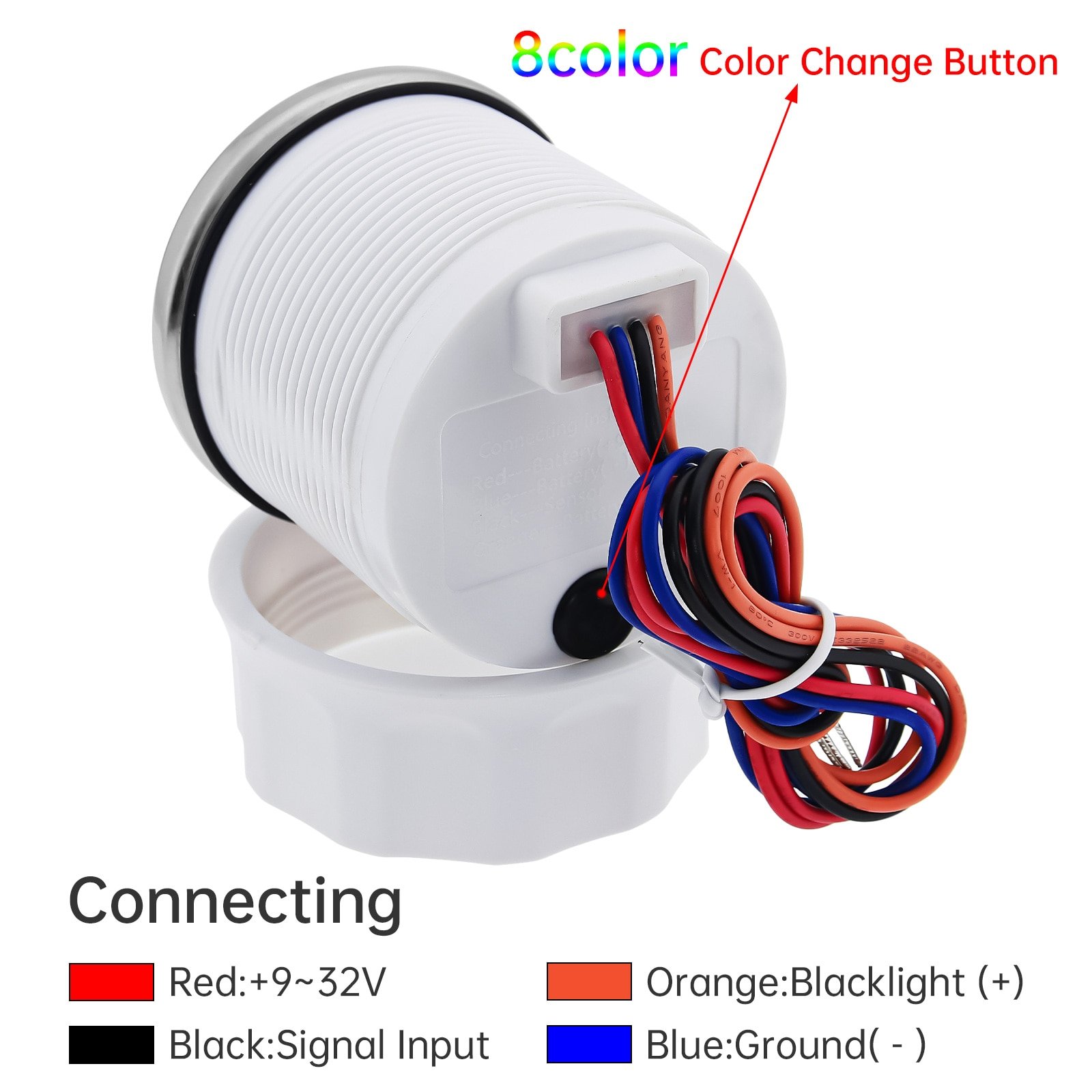

Gauge Connection:

1,Red –+9~32VDC
2,Black– Signal Input
3,Orange–Blacklight(+)
4,Blue–Ground(-)

Package:

1 PCS Gauge+Cable+Manual

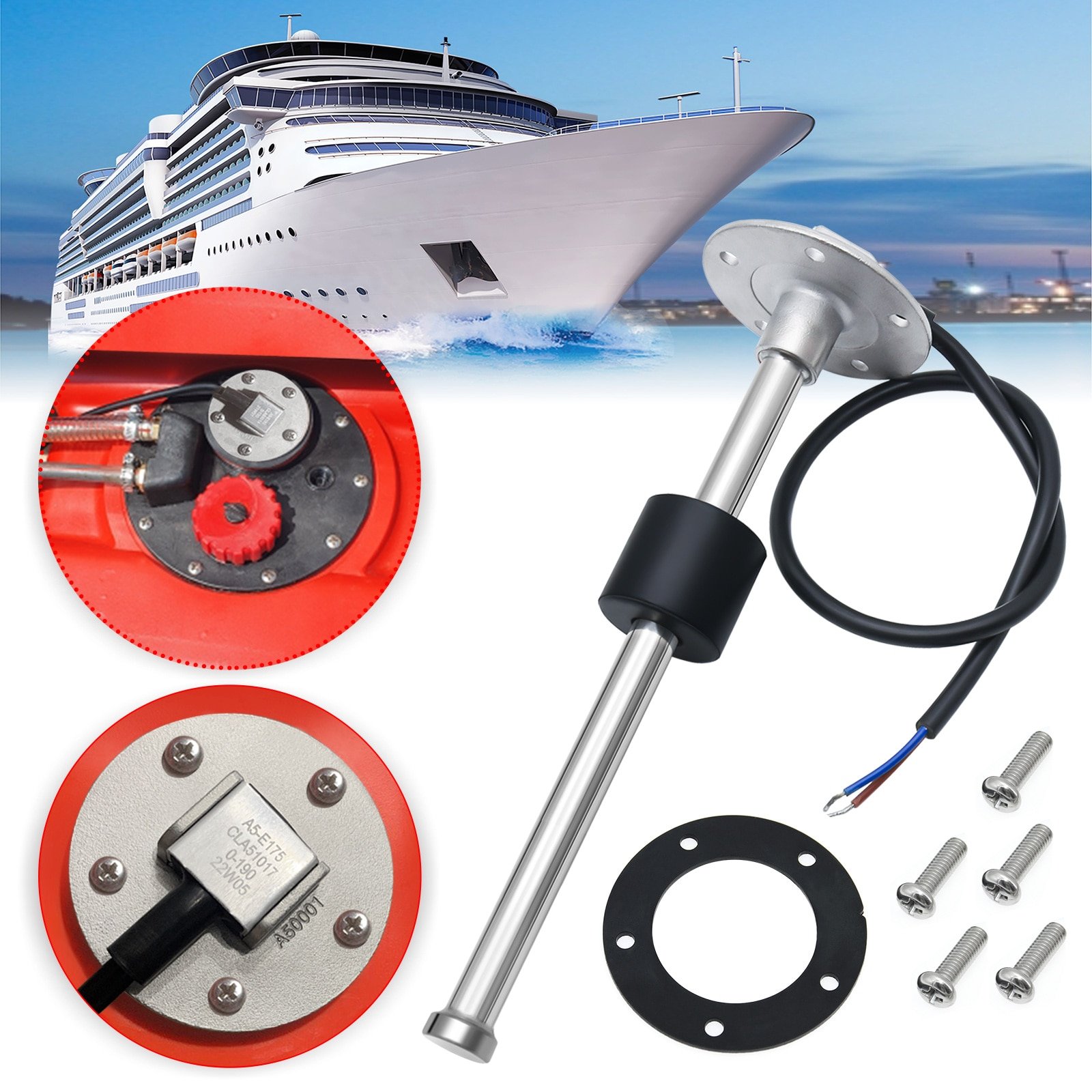

Fuel Level Sensor Specification:

– Protection ank: IP67
– Resolution range: 21 mm
– Assembly: SAE standard 5 holes
– Rated current for alarm switch: 500mA
– Operating temperatures: – 40 to 85 Celsius
– Fit for Fuel Level Gauge and Water Level Gauge
– Sensor Length :100mm-600mm
– Mounting: 5 pieces of M5 screws and 2 mm thick gasket
– Output signal: 0~190 ohm (Standard European),

Can be customized:

– Sensor Length:
100mm, 150mm, 200mm, 250mm, 300 mm ,350 mm ,400mm, 450 mm,500mm, 550mm, 600mm, 650mm, and so on

– Output signal:
0~190 ohm (Standard European), 240~33 ohm (Standard American) and so on

– The length and output signal of the sensor can be customized, if you need other sizes or output signal, please contact us at any time, we can customize any size for you~~

Attention:

– Empty oil level : 0 ohm
– Full oil level : 190 ohm

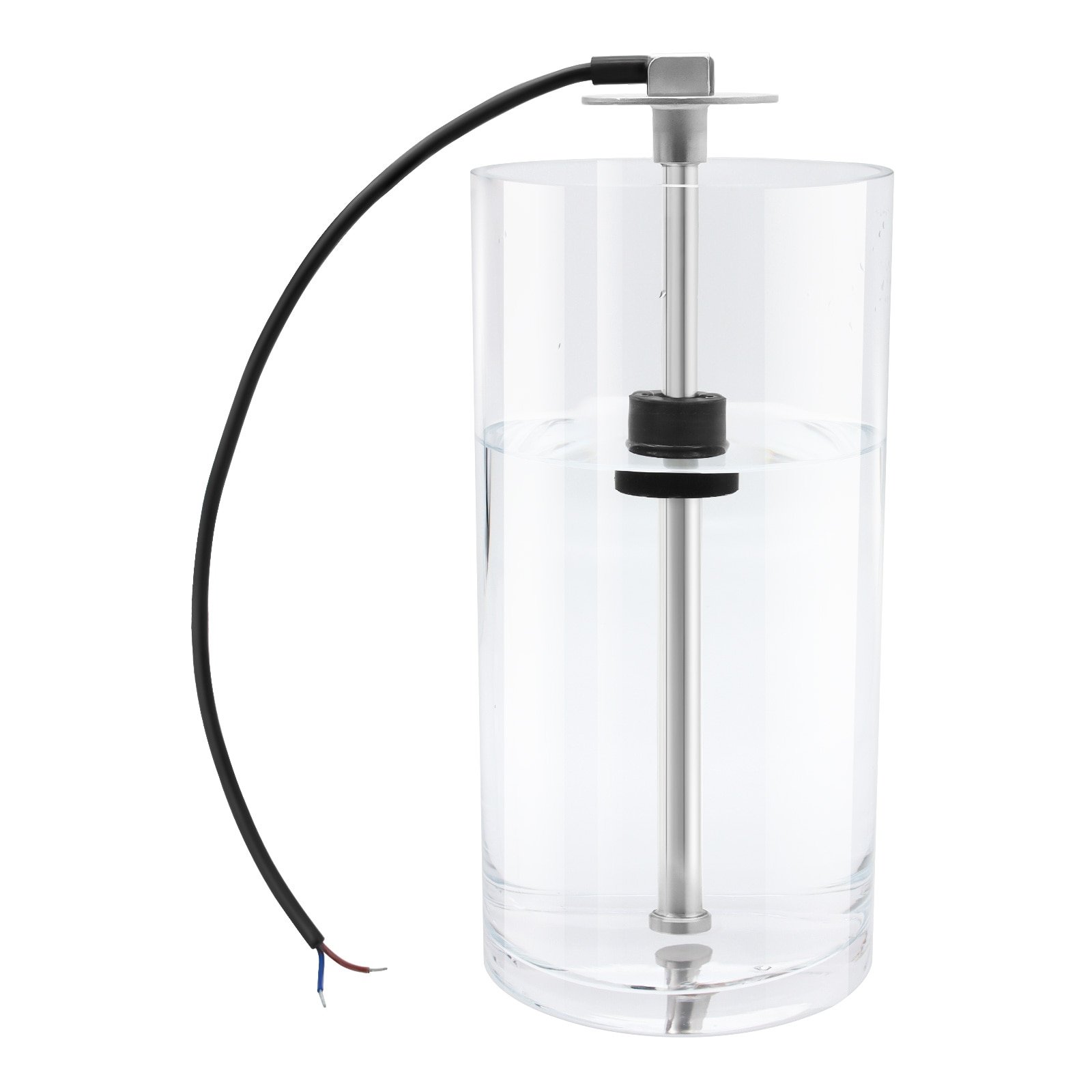

– When the oil / water level is empty , there will be a space of 3-15mm between the sensor float and the bottom of the sensor. This is a safe distance, and the sensor can work normally,Thank you~
– When the oil / water level is full, there will be a space of 3-15mm between the sensor float and the top of the sensor. This is a safe distance, and the sensor can work normally, Thank you~

Package:

1 x Sensor
1 x Gasket
5 x Screws
